Wi-Fi HaLow® Modules

Ultra-Long Range, Low Power, and High-Capacity Wi-Fi for IoT

Wi-Fi HaLow® (pronounced HEYlow) is the first Wi-Fi standard tailored to meet the Internet of Things (IoT) needs. It’s an open standard wireless network technology operating in the 850-950 MHz range. By operating in the sub-GHz range, this ultra-low-power wireless protocol can connect more IoT devices at much longer distances and much lower power than traditional Wi-Fi. The protocol is ratified by the IEEE 802.11ah task group and dubbed Wi-Fi HaLow® by the Wi-Fi Alliance.
Morse Micro and our trusted module partners offer commercially available Wi-Fi HaLow® modules that are globally certified and ready to deploy. These modules are designed to power the next generation of IoT solutions, ensuring rapid integration into any IoT application across various industries.

Trusted Module Partners

A range of Wi-Fi HaLow® modules, based on our SoCs and developed in partnership with leading technology providers, offer an exceptional range, quality, interoperability, and scalability for IoT applications. With extended connectivity, ultra-reliable performance, and the capacity to support thousands of devices connected to a single access point, these modules deliver robust solutions for even the most demanding environments. Designed to integrate seamlessly into your projects, they combine top-tier engineering with the power of Wi-Fi HaLow®, ensuring efficiency and scale at any level.

Quectel

image22_compressed

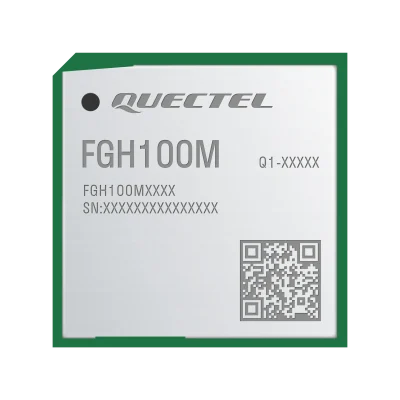

FGH100M

Form factor: LGA 44-pins
Dimension: 13x13x2.2 mm
Frequency range: 850-950 MHz
Certification: FCC and CE

Silex

image11_compressed

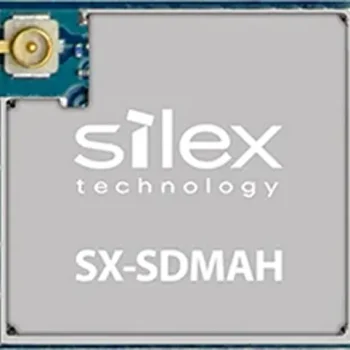

SX-SDMAH

Form factor: LGA 60-pins
Dimension: 17x18x2.65 mm
Frequency range: 902-928 MHz
Certification: FCC and IC

AzureWave

AW-HM581

Form factor: LGA 44-pins
Dimension: 13x13x2.1 mm
Frequency range: 902-928 MHz
Certification: FCC and IC

AW-HM593

Form factor: Stamp module 38-pins
Dimension: 14×18.5×2.25 mm
Frequency range: 903.5-926.5 MHz
Certification: FCC and IC

MegaChips

MRF61_A

Form factor: Stamp module 44-pins
Dimension: 23x14x2.25 mm
Frequency range: 921-927 MHz
Certification: TELEC (Japan)

AsiaRF

AsiaRF MM610X-001

Form factor: Stamp module 42-pins
Dimension: 22 × 17 × 2.0 mm
Frequency range: 850-950 MHz
Certification: FCC, IC, NCC, TELEC, CE, and RCM

FN-Link

4108E-S

Form factor: LGA 44-pin
Dimension: 13x13x2.1 mm
Frequency range: 850-950 MHz
Certification: RoHS and REACH

Acsip

AI6108L

Form factor: LGA 38-pins
Dimension: 18.5x14x2.15 mm
Frequency range: 902-928 MHz
Certification: FCC and TELEC

Vantron

VT-MOB-AH-L

Form factor: LGA
Dimension: 18.5×14 mm
Frequency range: 850MHz-950MHz
Certification: FCC, IC and CE

VT-MOB-AH

Form factor: LGA
Dimension: 23×14 mm
Frequency range: 850MHz-950MHz
Certification: FCC, IC and CE

VT-SOM-AH

Form factor: LGA
Dimension: 30×25 mm
Frequency range: 850MHz-950 MHz
Certification: FCC, IC and CE
